HPM90 CWS
Base | CAT®313 |
---|---|
Drilling Depth | 22 m72' ft |
Drilling Diameter | 1200 mm3'11" ft inc |
Operating Weight | 26500 kg58400 lbf |
Rotary Effective Torque | 66400 lb.ft90 kNm |
Go deep and keep it compact
Meet the HPM90 Crowd Winch System: a versatile workhorse engineered to thrive in a variety of construction settings. Its cable crowd system enables the efficient use of long casings, making it an ideal solution for demanding civil construction projects. Furthermore, the innovative modular mast design provides exceptional flexibility, allowing for quick conversion from standard to low-headroom configurations, with the capability to operate under structures as low as 5 meters.
HPM90 CWS
Go deep and keep it compactIntroducing a versatile and user-friendly drilling solution. Mounted on a CAT® 313 base and its dependable CAT C3.6 engine.
The HPM90 CWS has been designed engineered for effortless operation, ease of transport and tight job sites access. Its compact design and the intuitive parallelogram system allow for quick and easy transitions between transport and working configurations.

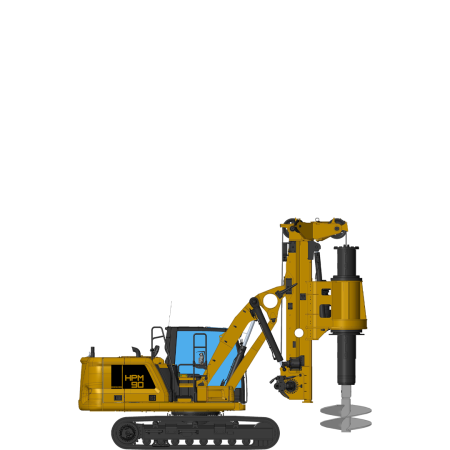

A key benefit is the ability to move the rig with the Kelly bar mounted, drastically reducing the time spent on setup. Furthermore, the adaptable modular mast of the HPM90 CWS allows for a rapid transformation into a low-headroom configuration, offering a minimum operating height of 5 meters (16’5″)

Comfort Cabin
The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day.
All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill.

Automatic Functions
Automatic functions allow the operator to reduce rig-up time and get the most in productivity.
With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.

Expandable Tracks
The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360° drilling capability.

Drilling Cruise Control
The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it’s speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately.

Remote Control
Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig.

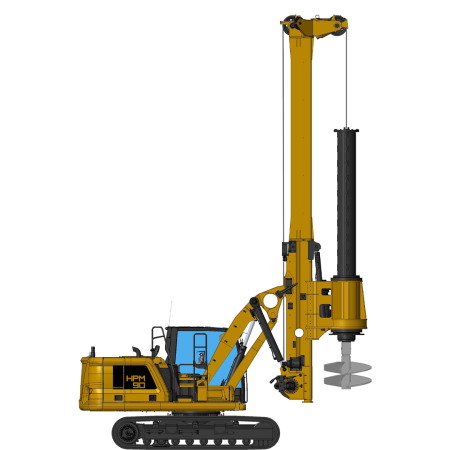

Long Mast Configuration
By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc.
Technical data
All data presented refers to the standard model and may vary based on specific equipment configuration and customer requirements.
Need more torque, pull or depth? Contact us to explore the full range of configuration options.
Base | CAT®313 |
---|---|
Engine Type | C3.6 |
Installed Power | 108 hp82 kW |
Max. Effective Torque | 66400 ft.lbs90 kNm |
---|---|
Working Speed | 7-55 rpm |
Main winch pull | 120 kN27000 lbf |
---|
Crowd Type | Winch Crowd System |
---|---|
Max. crowd force | 134 kN30000 lbf |
Crowd Stroke | 20'60" ft inc6250 mm |
Drilling Depth | 22 m72' ft |
---|---|
Drilling Diameter | 1200 mm3'11" ft inc |
Operating Weight | 26500 kg58400 lbf |
---|---|
Transport weight | 26500 kg58400 lb |
Transport width | 2500 mm8'2" ft inc |
Transport height | 10'2" ft inc3120 mm |
