HPM180
| Base | CAT®330 |
|---|---|
| Drilling Depth | 17 m54' ft |
| Drilling Diameter | 1800 mm6' ft inc |
| Operating Weight | 38000 kg84200 lbf |
| Rotary Effective Torque | 132000 lb.ft180 kNm |
Ready, set… drill!

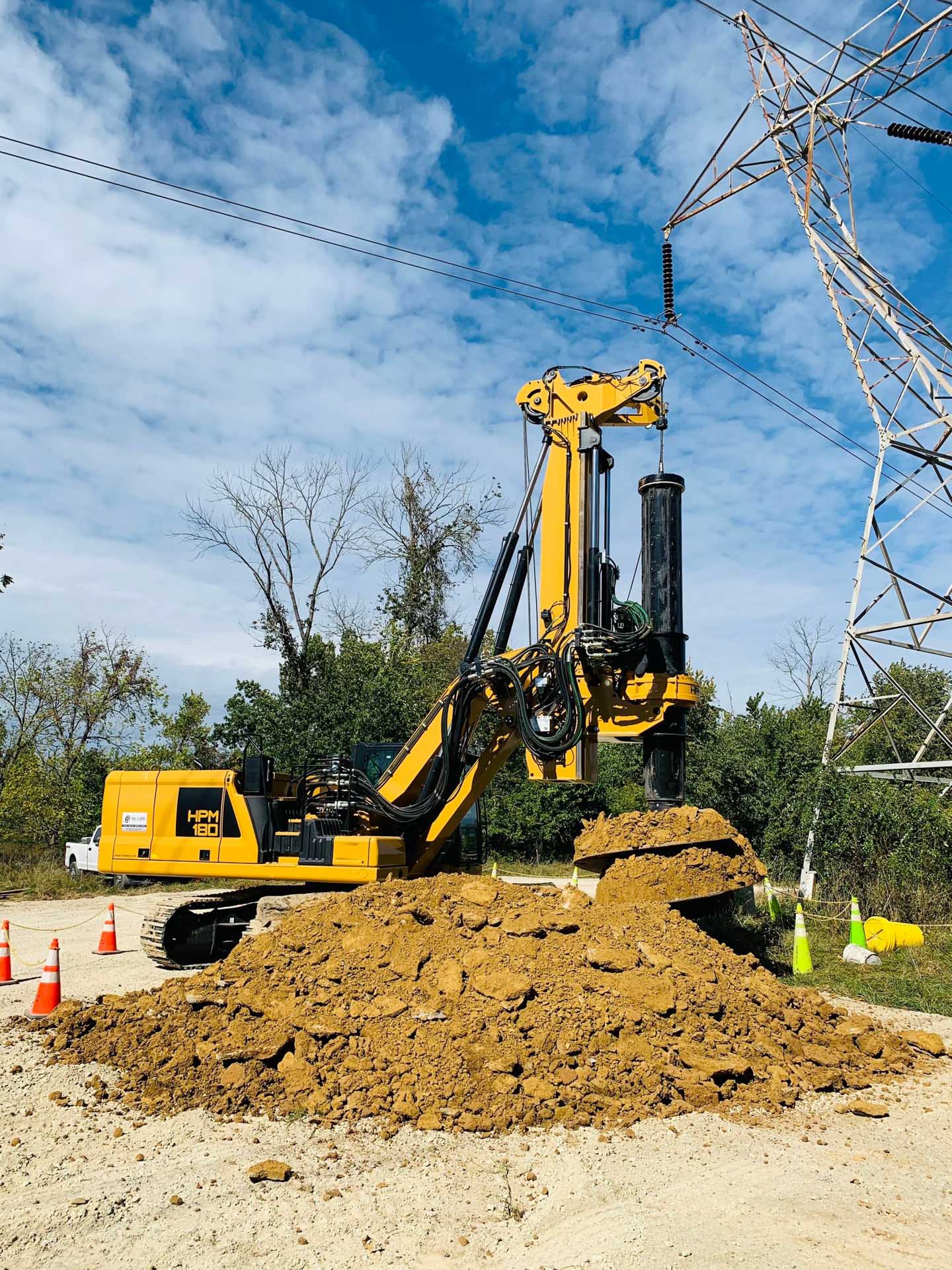

Fast and powerful, the strength of the HPM180 range is in its power and stability coupled with incredible speed in moving from site to site without assembly and disassembly steps during transport. Our customers’ favourite machine for work on power lines and substations.
HPM180
Ready, set… drill!Designed for the powerlines and substation jobs, it fits a 1800mm tool along the mast and different types of kelly bar ensure different drilling depth.
HPM180 is mounted on a CAT 330 base, equipped with a CAT C7.1 engine.
The range of HPM180 has been studied to provide the clients with a fast and powerful rig that can move quickly and without assembly and disassembly phases during transport. The HPM180 can be transport in one load and can be set up in no time.
Different options are available to meet different needs like high rotary torque, increased crowd pull, expandable undercarriage and more.
Counterweight Lifting System
This HPM can be assembled by itself without the need of assistant cranes.
This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits.
Long Mast Configuration
By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc.
Comfort Cabin
The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day.
All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill.
Automatic Functions
Automatic functions allow the operator to reduce rig-up time and get the most in productivity.
With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.
Drilling Cruise Control
The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it’s speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately.
Remote Control
Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig.
Technical data
All data presented refers to the standard model and may vary based on specific equipment configuration and customer requirements.
Need more torque, pull or depth? Contact us to explore the full range of configuration options.
| Base | CAT®330 |
|---|---|
| Engine Type | C7.1 |
| Installed Power | 205 hp275 kW |
| Max. Effective Torque | 132000 ft.lbs180 kNm |
|---|---|
| Working Speed | 7-33 rpm |
| Discharge Speed | 40-120 rpm |
| Main winch pull | 180 lbf40000 kN |
|---|
| Crowd Type | Cylinder Crowd System |
|---|---|
| Max. crowd force | 310 kN70000 lbf |
| Crowd Stroke | 1980 mm6'6" ft inc |
| Drilling Depth | 17 m54' ft |
|---|---|
| Drilling Diameter | 1800 mm6' ft inc |
| Operating Weight | 38000 kg84200 lbf |
|---|---|
| Transport weight | 38000 kg84200 lb |
| Transport width | 3000 mm9'10" ft inc |
| Transport height | 11'6" ft inc3500 mm |
